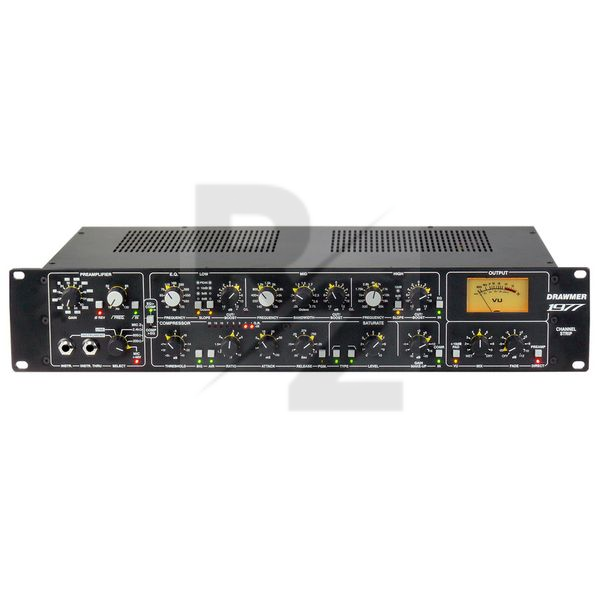

Drawmer 1977

Channel Strip

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Drawmer
Average price : $1791
With vintage character
Consists of a preamp, a parametric three-band equaliser, a soft knee compressor and a variable saturation stage
Wet/dry mix control
Output gain control
Fade control
Illuminated VU meter
Preamp Direct switch
Line input: XLR
Mic input: XLR
48 V phantom power
Instrument ID with direct output
Input impedance (switchable): > 20 kOhm
Input level max.: +21 dBu
Microphone ON: -130 dB
Input gain: 0 - +66 dB (microphone), -24 - +42 dB (instrument
Output impedance: < 100 Ohm
Output level max: +21 dBu (10 kOhm load impedance)
Output gain: off - +12 dB
Frequency response: 20 - 20,000 Hz +/-0.5 dB
Noise (unity gain, 20 - 20,000 Hz): > 93 dB
Distortion (THD+N @ 1 kHz): 0 dB: 0.01 %, 10 dB: 0.01 %
High-pass filter (variable): 16 - 130 Hz
Low band: 40 - 725 Hz
Slope: 6 dB / 9 dB / 12 dB / Peak
Cut/Boost: -12 - +12 dB
Mid Band: 140 - 13.000 Hz
Bandwidth: 0.25 - 2.75 octaves
Cut/Boost: -12 - +12 dB
High Band: 530 - 20.000 Hz
Slope: 6 dB / 12 dB
Cut/Boost: -12 - +12 dB
Compressor: Threshold (-40 - +20 dB), Ratio (1:1 - 10:1), Attack (0.2 ms - 100 ms), Release (0.05 s - 2 s)
Power supply: 230 V or 115 V at 50-60 Hz, 30 VA
Dimensions : 482mm x 88mm x 270mm
Weight : 4.2kg
