Earthworks Audio DK7 Gen2

Technical Data

• Manufactured by Earthworks Audio
• Condenser Microphone
• Polar pattern: Cardioid
• Frequency range: 50 Hz - 25,000 kHz
• Class-A amplifier
• 145 dB SPL
• Gooseneck condenser microphone for tom and snare pickup
• Polar pattern: Cardioid
• Frequency response: 20 Hz to 20,000 kHz
• Sensitivity: 8 mV/Pa (-42 dBV/Pa)
• Maximum SPL: 150 dB
• Requires phantom power 24-48 V
• Dimensions: 282 x 22 mm (length x diameter)
• Weight : 250g
• Polar pattern: Cardioid
• Frequency range: 20 Hz - 20,000 kHz
• Maximum SPL: 150 dB
• Includes plastic transport case
• Requires only 6 mA phantom power
• Integrated protection function against accidental ‘hot-swapping’
• New rim mounting system

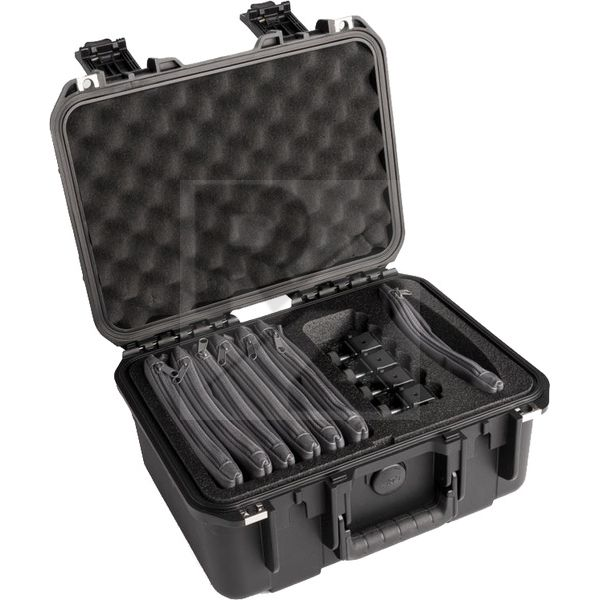

• Compact SKB transport case
• 2x SR25 condenser microphone for overhead miking
• 1x SR20LS for bass drum miking
• 4x DM20 gooseneck condenser microphone for tom and snare miking
• 4x RM1 rim mount
• 3x MC1 microphone clamp and 4x PW1 windscreen
