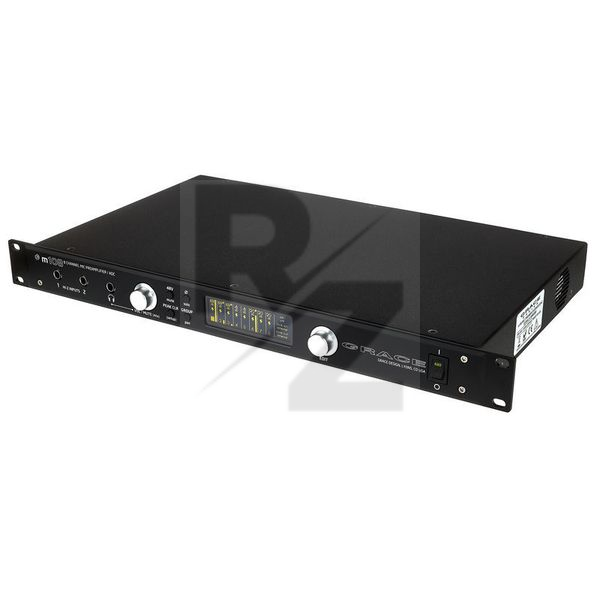

Grace Design M108

Technical Data

• Manufactured by Grace Design
• Released in 2019
• Average price : $4877
• Remotely controllable via integrated web browser controller
• 8 Channels with 192 kHz ADC outputs via AES, ADAT (4-channel SMUX) and USB 2.0
• Ribbon mic mode
• Gain Range: -6 to 69 dB
• OLED display for displaying all relevant parameters and settings
• Phantom power switchable +48 V
• 8 x Microphone input XLR
• 2 x Hi-Z input 6.3 mm jack
• 8 x Line output Sub-D25
• Ethernet RJ45
• Wordclock input and output BNC
• USB 2.0 connection
• AES3 output Sub-D25
• 2x ADAT output
• RS485 / RS422 MIDI input and output
• Stereo headphone output 6.3 mm jack
• Drive bay for optional Audinate / DANTE network audio card (not included)
