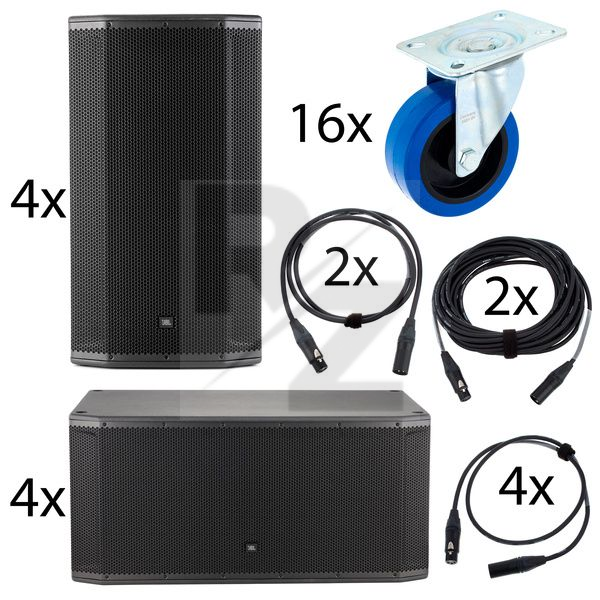

JBL SRX 835/828 Bassmaster Ground

Technical Data

• Manufactured by JBL
• Released in 2023
• Average price : $20598
• Active 2x 18" Subwoofer
• With DSP and App-Control
• Ideal bass supplement for the SRX812P, SRX815P and SRX835P
• Speakers: 2x 18" DCD subwoofers (3" coil)
• Amplifier wattage: 2000
• Maximum performance, high reliability and low power consumption
• Fast SHARC DSP
• Extensive possibilities for signal adjustments
• LCD display for easy operation
• Regulation and control via network and app for Android and iOS
• Scratch and impact resistant Duraflex lacquer
• Attachments for casters included on rear side
• Lockable socket for power cable
• Frequency range: 29 Hz -150 Hz (-10 dB)
• Max. SPL: 141 dB
• 20 Parametric EQs
• Max. 2 seconds delay
• 50 User settings
• Dimensions (H x W x D): 574 x 1,205 x 681 mm
• Weight : 65.9kg
• Active Full-range Cabinet
• Equipped with: 15" woofer, 6" midrange driver and 1.5" tweeter (3" coil)
• 2000 W amplifier for maximum power
• High operation reliability and low power consumption
• Fast SHARC DSP
• Extensive possibilities for signal processing
• LCD for easy operation
• Control via network and app for Android and iOS
• Scratch and shock resistant Duraflex varnish
• 35 mm stand flange mount
• M10 mounting points
• Lockable connector for power cable
• DCD chassis and neodymium tweeter
• Frequency response: 33 -21000 Hz (-10 dB)
• Max. SPL: 137 dB
• Coverage: 60° x 40°
• 20 parametric EQs
• Max. 2 seconds delay
• 50 User settings
• Two inputs on XLR /jack combo connectors
• Dimensions: 984 x 544 x 476 mm
• Weight : 38.6kg
• Prof. Microphone Cable
• Length: 10 m
• CMFLEXX 222 meterware
• 0.22 mm²
• Conductor resistance: 85 Ohm/km
• Diameter: 6.15 ± 0.2 mm
• NEUTRIK XLR female black / XLR male black
• Professional Patch Cable
• 150 cm
• CMK 222 FLEX sold by the metre
• 0.22 mm²
• Diameter: 6.15 ± 0.2 mm
• Conductor resistance: 85 Ohm/km
• Neutrik XLR female black/ XLR male black
• Professional Patch Cable
• CMK 222 FLEX (sold by the metre)
• 0.22 mm²
• Diameter: 6.15 ± 0.2 mm
• Conductor resistance: 85 Ohm/km
• Length: 1 m
• Neutrik XLR female black / XLR male black
• 100 mm Swivel Castor
• Without brake
• Roller bearing: Swivel bearing with double ball bearing
• Plate size: 102 x 84 mm
• Load-bearing capacity: 200 kg
• Overall height: 128 mm
• Hole spacing: 80 x 60 mm
• Width: 36 mm
