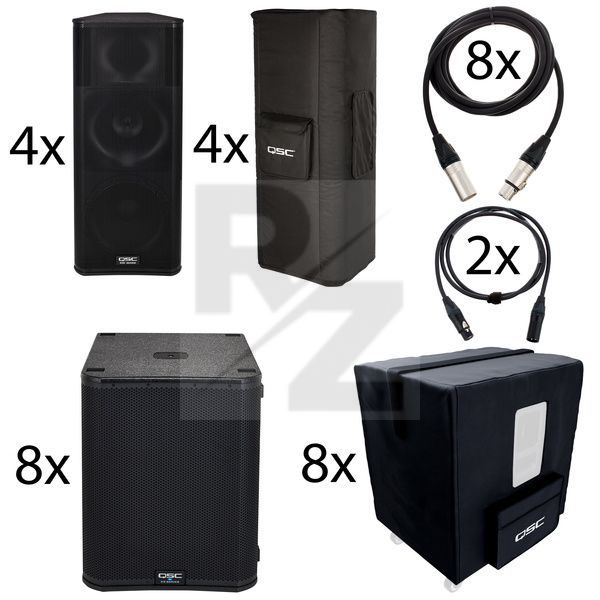

QSC KW153/KS118 High Power Ground

Technical Data

• Manufactured by QSC
• Released in 2023
• Average price : $27549
• Active 18" Subwoofer
• 3600 W Class D amplifier module
• direct radiating 18" long excursion direct radiating driver
• Frequency response: 35 - 111 Hz
• Max. SPL (sound pressure level): 136 dB
• Nominal coverage angle: Omnidirectional (360°) or cardioid - Cardioid setup requires at least 2x KS118 units
• DEEP mode
• Multi-functional display
• Adjustable crossover and delay
• Gain control
• Signal LED
• Limiter LED
• Power LED
• High-performance DSP
• 2 XLR/Jack combo line inputs for channels A and B
• 2 XLR/M outputs for channels A and B
• Vertical and horizontal deployment possible
• M20 threaded pole receiver
• 18 mm Birch plywood housing with impact-resistant lacquer finish
• 4 Heavy-duty casters
• LOCK power cable (length: 3 m)
• Dimensions including casters (H x W x D): 640 x 520 x 785 mm
• Weight : 47kg
• Colour: Black
• 3-Way Full-Range Active Speaker
• 1,000 watt Class D amplifier output power
• 2,000 Watt Hi-Peak Amplifier Output Power
• Equipped with: 15" woofer, 6,5" midrange and 1.75" voice coil
• Dispersion: (-6 dB) 70° axis-symmetrical
• Frequency range (-10 dB): 33 - 20000 Hz
• Max. Sound pressure level (1m): 134 dB
• Built-in two-channel mixer
• Channel A Input: XLR / jack combi jack, Mic / Line input switchable: Mic 24dB / 36dB with MIC LED or line: 0dB / 12dB, gain control, signal LED
• Channel A Output: XLR
• Channel B input: XLR / jack combi-jack and 2 x RCA jacks (L / R), line input, gain control, signal LED
• Channel B Output: XLR
• Channel A + B Output: XLR
• Remote volume control via Euro-jack of several loudspeakers for installation application
• DSP corrects non-linear distortions
• EQ modes "DEEP" for rich bass without sub and "vocal" for precise voice reproduction
• "GuardRail" protects power amplifier without switching off
• Speaker grille made of powder coated steel
• Housing made of 15 mm birch plywood with aluminum handles
• 11 Mounting points M10 for rigging suspension
• Slip resistant feet
• Locking power cable
• Length: 3m (C13 / protective contact)
• Low power consumption: up to 8 KW series loudspeakers can be operated on a 10A / 230V standard line
• Auto standby mode
• Dimensions (H x W x D): 1094 x 470 x 427 mm
• Weight : 39.5kg
• Six-year manufacturer warranty upon product registration
• Protective cover
• For QSC KS 118
• Made of hard-wearing and weather-proof nylon
• With protective padding
• Cable compartment
• Colour: Black
• Protective Cover
• Suitable for KW 153
• With cable compartment
• Material: Nylon / Cordura
• Professional Patch Cable
• 150 cm
• CMK 222 FLEX sold by the metre
• 0.22 mm²
• Diameter: 6.15 ± 0.2 mm
• Conductor resistance: 85 Ohm/km
• Neutrik XLR female black/ XLR male black
• High Quality Microphone Cable
• Profile: 2 x 0.22 mm²
• With Neutrik XLR male/female connectors
• Colour: Black
• Length: 3 m
• Made in Germany
