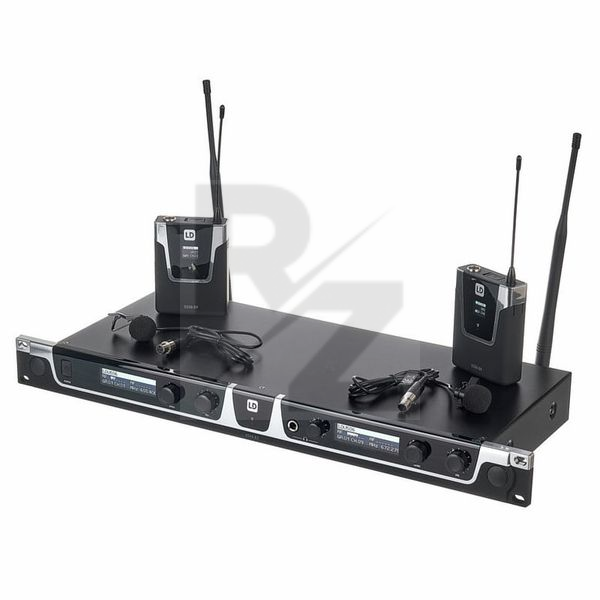

LD Systems U506 BPL 2

Wireless Microphone System

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by LD Systems
Released in 2020
Average price : $755
With 2x bodypack and 2x lavalier microphone
Total weight: 5.259 kg
Includes 2x AA batteries, fastening clip, foam windscreen, 2x antenna, audio cable and power adapter
Radio frequency range: 655 - 679 MHz
96 Channels (8 groups with 12 channels each)
3-Pin mini XLR inputs
Frequency response: 30 - 16,000 Hz
OLED display
Up to 10 hours of operation
Transmitter operation with 2x AA batteries
Dimensions : 65mm x 86mm x 23mm
Weight : 0.09kg
2 Antenna inputs
BNC antenna connection
Audio output per channel + sum output: balanced XLR, unbalanced 6.3 mm jack
Controls: digital encoder, volume
Dimensions : 212mm x 44mm x 159mm
Weight : 0.85kg
Characteristic: Cardioid
Frequency response 20 - 20,000 Hz
Impedance: 680 ohms
Phantom power 5 V
Microphone connector: 3-pin mini XLR female
Weight : 0.026kg
