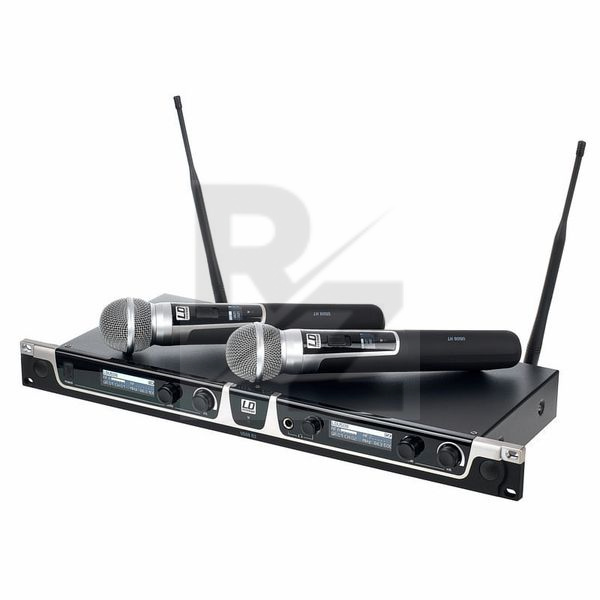

LD Systems U508 HHD2

Technical Data

• Manufactured by LD Systems
• Released in 2016
• Average price : $706
• With 2 remote controls
• Dynamic exchange capsule
• Polar pattern: cardioid
• 19" / 1U true diversity receiver
• 96 channels in 8 groups of 12 channels
• Audio-frequency range: 60 - 16000 Hz
• Switchable transmission power (2 mW, 10 mW, 30 mW)
• Frequency scanning in the receiver
• Automatic frequency scanning with infrared transmission setting from the receiver to the transmitter
• Pilot tone
• Bright OLED display
• Adjustable 6.3 mm headphone output
• Transmitter operation with 2 AA batteries
• Frequency band 823-832 MHz and 863-865 MHz
• XLR and jack output per channel
• XLR Jack Mix Out
• Operating at 13.5 V DC power supply 1000 mA
• BNC antenna connections
• Incl. 2 AA batteries, antennas, cases and power supply
