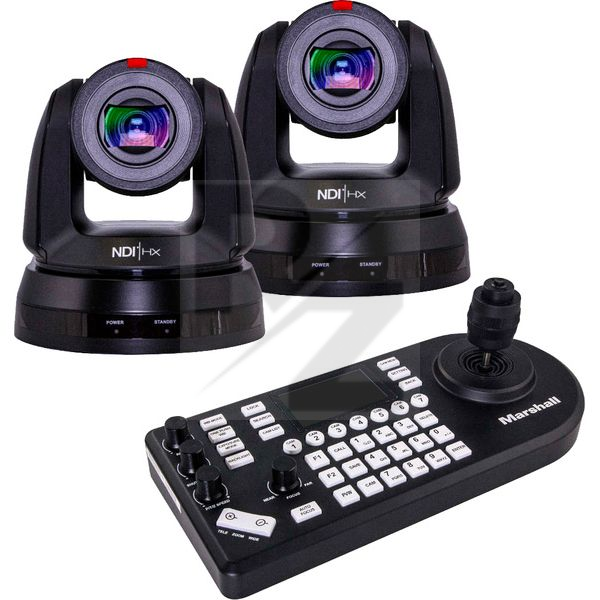

Marshall Electronics CV630-ND3-Kit2

PTZ Camera Set

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Marshall Electronics
Marshall Electronics CV630-ND3
UHD PTZ Camera
NDI|HX2 / IP / HDMI / 3GSDI / USB / PoE+ (power over ethernet)
25x Optical Zoom (4.8~120.5 (mm) - 68°~2.7° AOV
Smart Auto Focus: eyes and mouth recognition for optimum focussing of faces
Sensor: 8MP 1/2.5" Sony IMX317
Minimum illumination: 0.1 lux (F1.5, 50IRE, 30fps)
340° Horizontal Pan / 120° Vertical Tilt
Dynamic speed adjustable between 5° and 300° per second via the menu
Front Tally
3.5 mm TRS stereo audio over I/O cable (Mic/Line)
Controllable via RS232 / RS422 / IP
IP protocols: VISCA / VISCA IP / PELCO D / ONVIF / UVC/CGI
Dimensions : 190mmmm x 174mmmm x 186mm
Weight : 2kg
Colour: Black
Includes ceiling bracket and remote control
2160p: 59.94 / 50 / 29.97 / 25
1080p: 59.94 / 50 / 29.97 / 25
720p: 59.94 / 50 / 29.97 / 25
1080i: 59.94 / 50
720p: 59.94 / 50 / 29.97 / 25
1080i: 59.94 / 50
IP streaming resolution: NDI HX3: 1080P
NDI HX2: 1080P/4K
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640x360 29.97fps
Marshall Electronics VS-PTC-300 PTZ NDI and IP camera controller
NDI and IP-capable PTZ controller
Simple installation: controller searches the network for available NDI or IP cameras
Compatible with all PTZ cameras that support NDI / IP / RS232 / RS422
The NDI image can be shown on the display
Tally display for: normal tally
On-air tally and contact mode
Dimensions: 300 x 140 x 110 mm
Weight : 1.3kg
