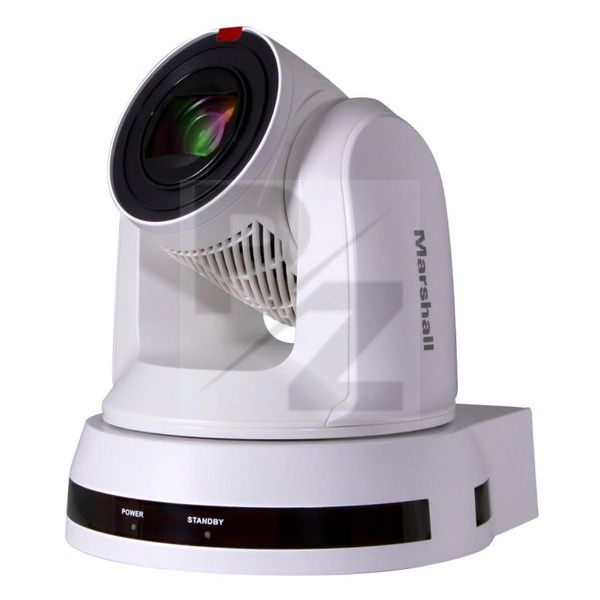

Marshall Electronics CV630-WI UHD PTZ Camera

Technical Data

• Manufactured by Marshall Electronics
• Delivers Ultra HD videos (up to 3840x2160p) with an 8-megapixel sensor and 25x optical zoom
• Simultaneously supports HDMI, 3G-SDI and IP streaming (H.265/H.264)
• PoE+ capable
• Power supply, control commands and video transmission function via a single Ethernet cable
• Versatile control options (IR, RS-232/422, Visca/IP)
• Front tally light
• Colour: White
• Dimensions: 174 x 186 x 190 mm
• Weight : 1.9kg
• Includes adapter plate for top mounting, infrared remote control, power supply unit and power cable
• 8 Megapixel sensor (1/2.5") UHD
• 25x optical zoom (4.8 ~ 120.5mm)
• AOV max. 68°
• 340° Pan / 120° Tilt
• Shutter speed: 1/1 ~ 1/10.000 sec
• Minimum focus distance: 1.5 m
• 3840 x 2160p (59.94 / 25 / 29.97 fps) via HDMI and IP
• 1920 x 1080p (59.94 / 50 / 25 / 29.97 fps) via 3G-SDI and USB 3.0
• 1280 x 720p (59.97 / 50 / 29.97 / 25 fps) via all outputs
• IP
• 3G-SDI
• HDMI
• USB 3.0
• Line In / Mic In: 3.5 mm jack sockets
• POE: 18 W
• DC In: 16 W
