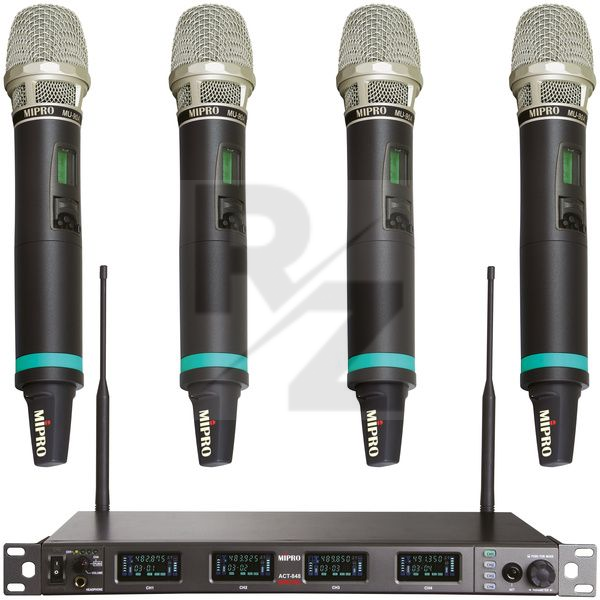

Mipro ACT-848 MU90 Quad Set 5UB

Technical Data

• Manufactured by Mipro
• 72 MHz switching bandwidth
• Frequency range: 554 - 626 MHz
• 224 preset channels in seven groups
• Up to 48 compatible channels
• Latency: < 2.7 ms
• 115 dBA dynamic range
• 256-bit encryption
• Range up to 100 metres
• ACT Automatic Channel Targeting
• Full-colour VFD display
• Interference warning indicator
• SmartEQ
• Adjustable reception sensitivity
• Three-stage adjustable output level
• TNC antenna connections with 8 volts bias voltage
• XLR outputs with ground lift
• Digital AES/EBU outputs
• Word clock I/O
• RJ11 remote I/O
• Dimensions without rack ears (W x H x D): 420 x 44 x 230 mm
• Weight : 2.6kg
• Colour: Black
• Includes rack ears, power supply (100-240 volts) and RJ11 patch cable
• True condenser MU-90 capsule
• Polar pattern: Supercardioid
• Frequency range: 554 - 626 MHz
• Transmission power adjustable (10 mW/ 50 mW)
• Interchangeable capsule system for other separately available Mipro capsules (also compatible e.g. with Shure capsules, not included)
• Lockable on/off switch
• Various mute modes (manual, auto, off)
• LC display with battery status, group and channel display
• Power supply via 2 x AA batteries or 1 x 18500 Li rechargeable battery
• USB-C port for charging the battery in the housing
• Charging contacts for separately available chargers Mipro MP-800 and 820 (not included)
• Battery life up to 12 hours
• Weight : 292g
• Includes bag, microphone clamp, battery, USB-C charging cable and colour coding rings
