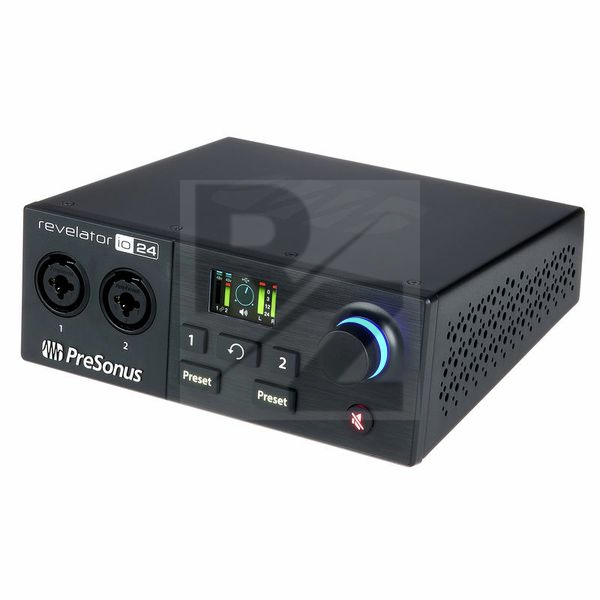

Presonus Revelator io24
USB 2.0 Audio Interface
Latest User Reviews
Very good device for streamers
This device should be recalled! The headphone output is unbearably noisy at idle!
I had very high hopes for a usb-c powered small interface for use with usb-c iPad Pro, that also had built in effects for tracking vocals, but the minute I connected it I was puzzled by the ticking noise in the headphone output.
It's like a noise coming from a un-shielded old computer headphone jack. It's ticking frequency depends on the volume of headphone output and if there is any playback volume. It actually disappears when you output any sound. It's a engineering disaster and how is it even possible that it passed any quality control. It's also not just me, even here there are reviews of exactly the same problem.
Technical Data
- Manufactured by Presonus
- Released in 2021
- Average price : $140
- Wth integrated loopback mixer, effects and stream mix mode for streaming, podcasting, recording etc.
- Bus-powered USB-C audio interface
- Resolution: 24-bit/44.1 - 96kHz
- Two stereo loopback channels for mixing audio from multiple applications as backing tracks, as well as recording Skype or Zoom calls, gaming audio and more
- Two XMAX-L microphone preamps
- Max. input level: +10dBu (±0.5dBu, min gain)
- Max. gain: 60dB
- Frequency range: 20 - 20000 Hz
- THD + N: 0.009% (1kHz, -1dBFS, min gain)
- ON: -126dBu (A-weighted, 150O, max gain)
- With stereo link option
- Switchable phantom power (+48 V)
- Integrated DSP for signal processing
- StudioLive Fat Channel with high-pass filter, gate, 3 compressors, 3 EQs and limiter
- StudioLive speech effects with doubler, vocoder, ring modulator, comb filter, detuner, delay and reverb
- With factory presets
- Stream mix mode for mixing input signals, effects, loopback channels, etc.
- LED level display
- 2 Combo inputs Mic/Line/Inst: XLR/jack
- 2 Line outputs: 6.3 mm jack
- Stereo headphone output: 6.3 mm jack
- MIDI in/out
- USB-C port
- Latency-free monitoring
- USB 2.0 compatible
- Remote control via UC Surface software mixer for iPadOS, Windows and Android
- Dimensions (H x W x D): 6.35 x 15.88 x 15.88 cm
- Weight : approx. 0.9kg
- Includes Presonus Studio One Artist, Ableton Live Lite and Studio Magic Suite software (download)
