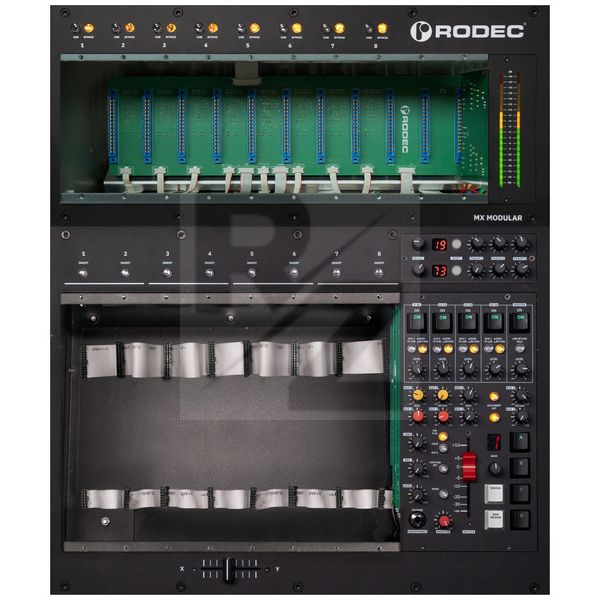

Rodec MX Modular Base Console

Configurable mixing console for studio and performance applications

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Rodec
Flexible routing enables use in various application areas
10 500-format slots: Slots 1-8 are permanently routed to channels 1-8, slots 9-10 are switchable to master or bus1
18-channel AD/DA converter with USB-C interface and AKM ADCs and ESS DACs
Inputs (1-8) per channel switchable between analogue line signals and USB audio
Bypass for channels 1-8 individually switchable - bypasses the 500 format slot and routes the signal directly from the input to the fader module
Insert switchable per channel (1-8)
Stereo insert on the master bus and the buses (1 and 2)
X/Y crossfader for channels 1-8
Channels 9-16 are grouped into four stereo pairs
On button per stereo pair (9-16) activates routing to the master bus
Volume control per stereo pair (9-16)
Programmable mute and solo buttons
LED VU meter
2 Stereo AUX sends and 2 stereo BUS routings per channel
2 Stereo AUX returns
3 Analogue summator buses including the master bus
Up to 26 analogue summing channels: 16 USB or analogue inputs, external stereo input, 2 stereo AUX returns and 2 stereo BUS returns
Direct Out per channel (after the 500 module)
Balanced high-end master output with discrete operational amplifiers and Lundahl transformers with +28 dBu headroom
Monitor output
Headphone output with individual level control and cue/mix control
CV input for all 500 slots - requires compatible 500 modules such as the M-104 Dynamic Filter Module
19" Rack mounting format
Dimensions : 451mm x 625mm x 285mm
Weight : 9.9kg
