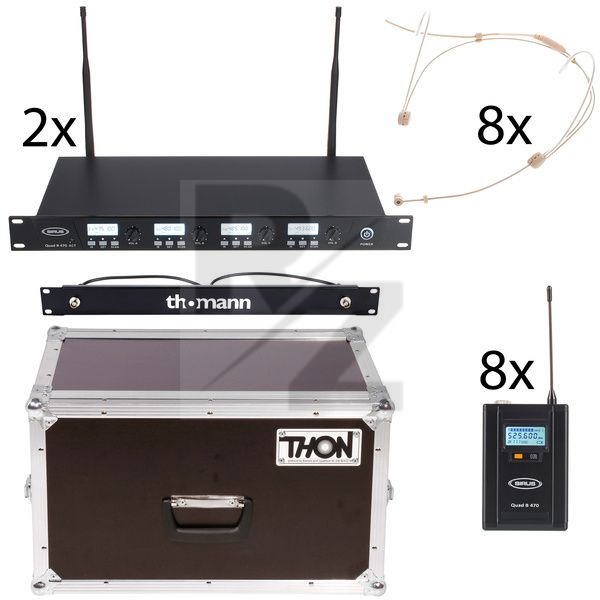

Sirus Quad R/8B 8 Headmike D 470 Set

Technical Data

• Manufactured by Sirus
• Average price : $1402
• Transport Case
• With inlay for maximum 8 handheld or 8 bodypack transmitters and batteries
• 3U rack rail on top for 2x 4-way receivers and 1x antenna panel
• Installation depth 340 mm
• Felt and hook-and-loop fastener at the back for a power supply unit
• Mesh pocket in lid for headset
• 7 mm multiplex wood, phenolic resin coated
• 22 x 22 mm aluminium edge
• 1 Case handle
• 2 Folding handles
• 4 Drawbolts with eyelet
• 8 Small ball corners
• 4 Rubber feet
• Foam inlay
• Foam padding
• Hook-and-loop fastener
• External dimensions (W x D x H): 530 x 460 x 316 mm
• Weight : 8.1kg
• Colour: Brown
• Incl. screw set
• Made in Germany
• Professional 4 channel UHF radio receiver
• Frequency scan
• Volume control, auto squelch, battery indicator and infra-red transmission of settings from receiver to transmitter per channel
• Outputs: XLR male per channel, as well as 1x XLR / 6.3mm jack sum output
• Frequency band: 470-526 MHz
• Frequency range: 40 Hz - 18 kHz
• Distortion factor: <0.5% @ 1kHz
• Signal-to-noise ratio >110dB
• Sensitivity: -95~ -75dBm
• Modulation type: PLL
• Power supply via external power supply 12 V DC 600mA (polarity: plus inside)
• Detachable BNC antennas
• Dimensions 19" 1U, installation depth 215mm (without antennas)
• Weight : 1.95kg
• Professional Pocket Transmitter
• Compatible with Sirus Quad R 470 # 543456
• Mini-XLR 3pin (TQG) connector (the t.bone and AKG compatible)
• Synchronisation with receiver via infra-red
• Frequency band: 470-526 MHz
• Frequency range: 40 Hz - 18 kHz
• Distortion factor: <0.5% @ 1kHz
• Transmitter power: < 30 mW (switchable)
• Battery: 2x AA 1.5 V
• Battery life: 8 resp. 15 hours depending on transmission power
• Display: frequency and battery status
• Detachable antenna length: 85 mm
• Dimensions without antenna (HxWxD): 95 x 62 x 34 mm
• Weight : 100g
• Colour: Matt Black
• Headset Microphone
• Lightweight condenser headset microphone
• Two earhooks
• Left/right adjustable
• Characteristic: Kidney
• Frequency range: 50 - 20000 Hz
• Sensitivity: 4.4 mV / Pa, -47.2 dB re 1 V / Pa
• Sound pressure level limit: 115 dB
• Impedance: 750 Ohm
• 3-pin Mini XLR connector suitable for AKG Bodypack transmitter
• Cable length: Approx. 120 cm
• Colour: Beige / flesh coloured
• Includes cable clip
• Antenna converter
• 19" Panel with 4 BNC connectors for true diversity systems
• Includes 4x 50 cm BNC cable
