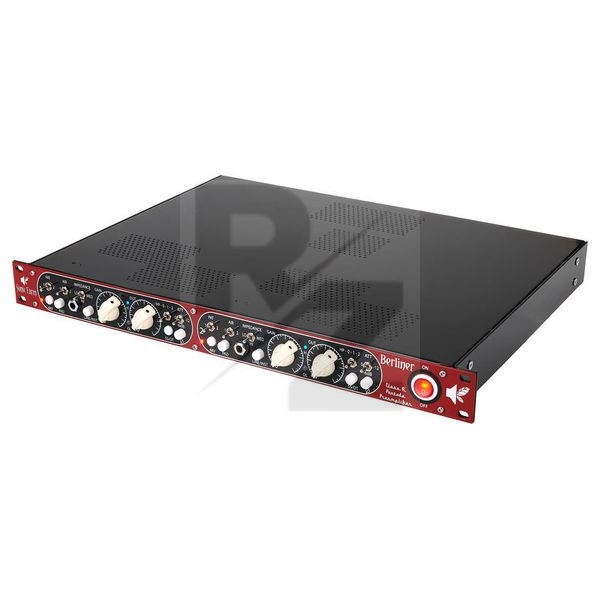

Sonic Farm Berliner

Technical Data

• Manufactured by Sonic Farm
• Released in 2022
• Average price : $3794
• Based on the circuit design of the legendary V76 preamp
• EF86/EF806 tubes
• 2 Cinemag input transformers for microphone- and line-inputs
• Cinemag output transformer (solid-state stage alternatively selectable)
• The input gain and output level are separately adjustable
• Up to +76 dB gain
• Phantom power: +48 V
• Pad switch: 10 dB
• DI input for instruments (input impedance: 3.9 MOhm)
• Phase reverse switch
• Switchable bass and treble boost (each with two levels)
• Input impedance switchable between 10 kOhm, 900 Ohm and 2400 Ohm
• Switchable high-pass filter (80 Hz or 160 Hz)
• Attenuator with -6 dB or -12 dB for the output stage available
• Frequency response: 10 Hz - 50 kHz (+/- 3 dB)
• Maximum output level: +32 dBu
• 2x Microphone input (XLR)
• 2x Line input (XLR)
• 2 x Line/instrument input (6.3 mm jack)
• 2x Line output (XLR)
• Ground lift switch
• Dimensions: 19" / 1 HE
• Weight : 7.29kg
