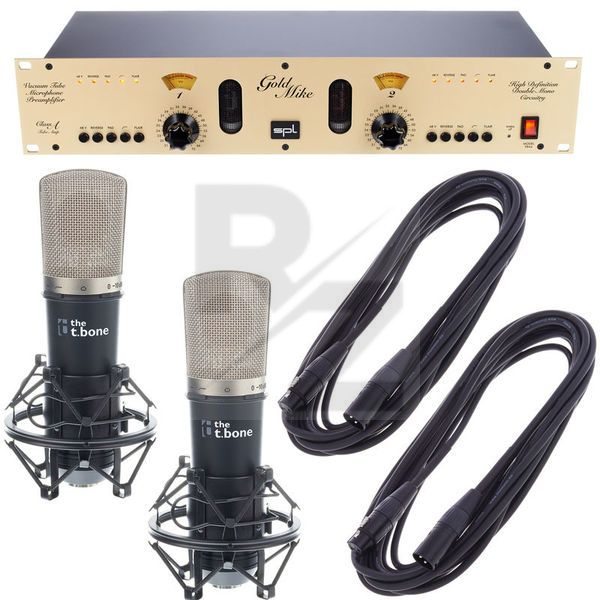

SPL Goldmike Studioset 2

Technical Data

• Manufactured by SPL
• Released in 2000
• Average price : $730
• 2-Channel Tube Pre Amp with Class-A Technology
• Dynamic Range 111 dB
• Reinforcements to 72 dB
• Two separate mono pre amplifiers
• Suitable especially for HD recording
• 48V phantom power
• Phase reverse switch
• Pad function
• Low cut filter and "FLAIR" circuit
• Improved vocal presence
• Very clear, warm sound
• XLR Mic input
• XLR Line out symmetrical, 6.3 mm jack unbalanced line out
• 19" Rackmount 2U
• Studio large diaphragm microphone
• Polar pattern: Cardioid
• Frequency range: 20 - 18.000 Hz
• Sensitivity: 18 mV/Pa -36 +/-2 dB (0 dB=1V/Pa 1000 Hz)
• Equivalent sound pressure level: 18 dB (A weighted)
• Max. SPL for 0.5 % THD @1000 Hz: 126 dB
• External low cut and -10db pad switch
• Balanced transformer
• Requires 48V phantom power
• Connection: 3-pin XLR
• Dimensions (max. diameter x length): 50.5 x 190 mm
• Incl. Shock mount and PVC case
• Professional microphone cable
• Length: 6 m
• Black Yongsheng XLR plug (made by Neutrik)
• Incl. hook and loop fastener
