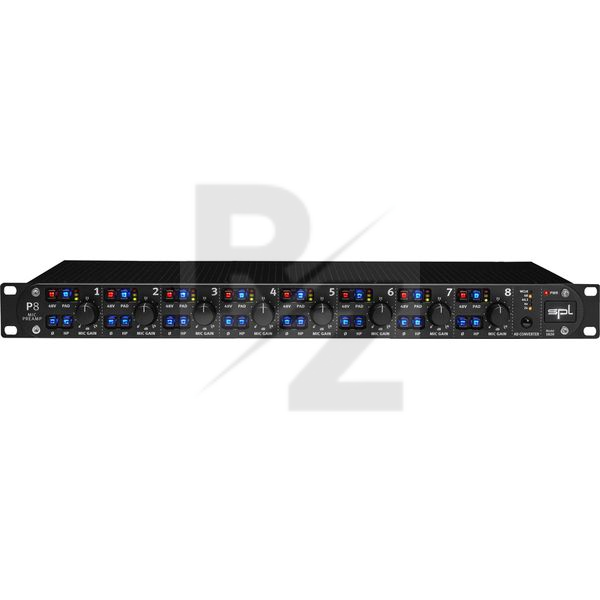

SPL P8 + ADC8

8-Channel Microphone Preamplifier and A/D Converter

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by SPL
Discrete Microphone Preamplifier
Per channel: individually switchable phantom power (48 V)
PAD-Schalter: -20 dB
Phase inversion function and a switchable analogue high-pass filter (6 dB per octave at 80 HZ)
Frequency range: 15 Hz - 200,000 Hz
Equivalent input noise: -124 dBu
Noise (A-weighted, mic preamp, 150 O, 30 dB gain): -94 dB
Conversion: 192 kHz / 24 bit
8 XLR microphone input
1 Sub-D25 line output
2 ADAT output
Word Clock input and output
Dimensions: 482 x 44 x 237 mm
Weight : 4.15kg
