Stairville DR-1 DMX Recorder 19" SD

DMX Recorder

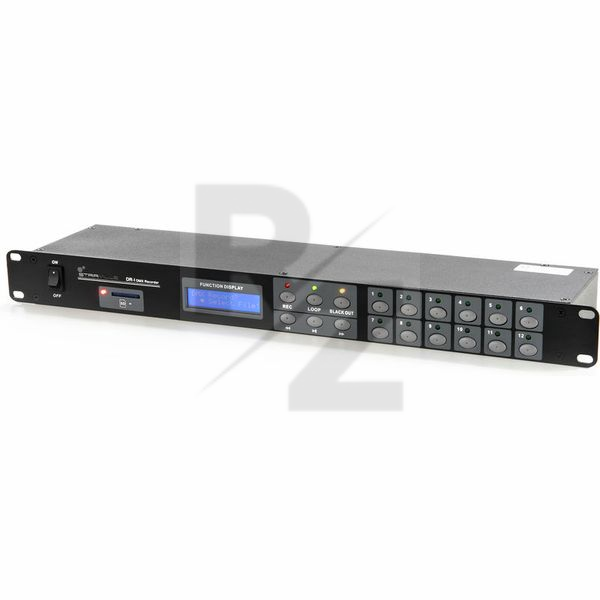

Image Stairville DR-1 DMX Recorder 19

Rating :

1
2
3
4
5

stars

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Latest User Reviews

5 years ago

Very good quality

Very easy to use I do a lot of pre programming for different venues pop the scenes onto a memory card just change the memory card at each venue it has never failed once

Good Product So Says DAVE DEE: Dave Dee Discos in the UK

6 years ago

Problem with inputs

Great little dmx recorder, a little odd procedure to start and stop recordings, could sorely use a stop button rather than just a play pause. Had a major issue with dmx inputs though. I bought two of these, specifically to play on one, while recording on the other, layering more live mixing , using a lighting desk, one layer of action at a time. This will never play dmx, if there is a dmx signal going into the device, meaning, you can’t press play, if it’s plugged into a lighting desk, this is a huge issue, and a massive design flaw, that really makes these units needlessly complicated to record in. Also the record procedure, needs to be more intuitive / idiot proof, I found the manual essential to make it work, and needs to be able to merge dmx signals internally, this is a troublesome failing.

12 years ago

Stairville DR-1 DMX Recorder 19" SD

The Stairvillle DR-1 DMX Recorder 19" SD is very easy to use and reliable.

From loading a file to run takes about 1 second. it's quite impressive for this price.

That's why our company decided to by 6 more pieces for the other studio.

Technical Data

  • Manufactured by Stairville
  • Released in 2012
  • Average price : $213
  • DMX-512 input (3 pin XLR) to record light shows in real time
  • 2 Modes (Record and Play mode) memory for a total of 12 shows (with speed that can be varied)
  • SD card slot (all files are immediately/directly stored on the card)
  • DMX-512 output
  • 3-Pin XLR
  • 2 Different play modes (Solo Run and Loop Run Mode)
  • Internal clock for time-controlled shows
  • A total of 21 start or end times
  • 3 Timings a day
  • Software update via SD card
  • Power supply: 9-12V DC Min 300 mA
  • DMX input and output: 3 pin XLR
  • SD card: 4G or higher
  • Measurements: 483 x 44.5 x 105 mm
  • Weight : 1.5kg
