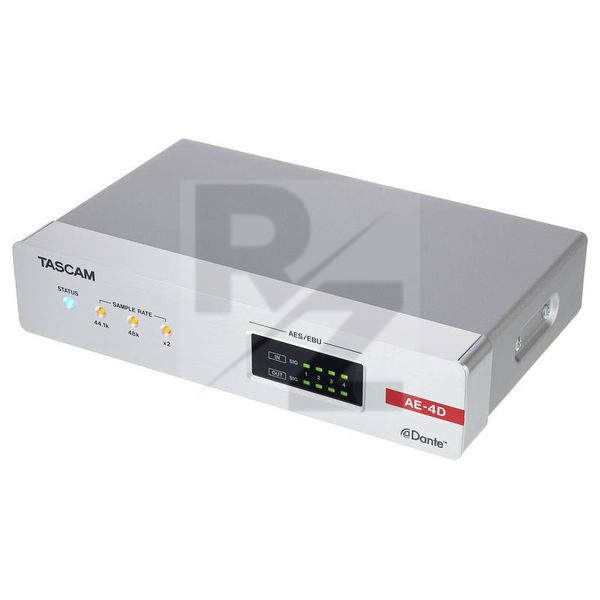

Tascam AE-4D

4-Channel AES / EBU Dante AES / EBU converter with DSP mixer

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Tascam
Released in 2019
Average price : $677
Enables the transmission of audio signals over an Ethernet network
Sample rate converter in the input - 32 - 192 kHz
4 Audio channels at 44.1 / 48 kHz, 16/24 bit, 2 audio channels at 88.2 / 96 kHz, 16/24 bit
Signal displays for input and output signals
Storable up to 50 presets
2 Different programs available for control (for Windows, Mac, iOS and Android devices): MX Connect for system installer, EZ Connect for end users
Supports AES67
Powerful DSP mixer with compressor and 4-band EQ at the input and 10-band EQ, delay, limiter at the output range
2 AES / EBU inputs and outputs XLR
2 Gigabit Ethernet 1000BASE-T RJ45 connectors
Power supply via PoE or external power supply PS-P1220E (power supply not included)
Dimensions : 214mm x 45mm x 136mm
Weight : 795g
