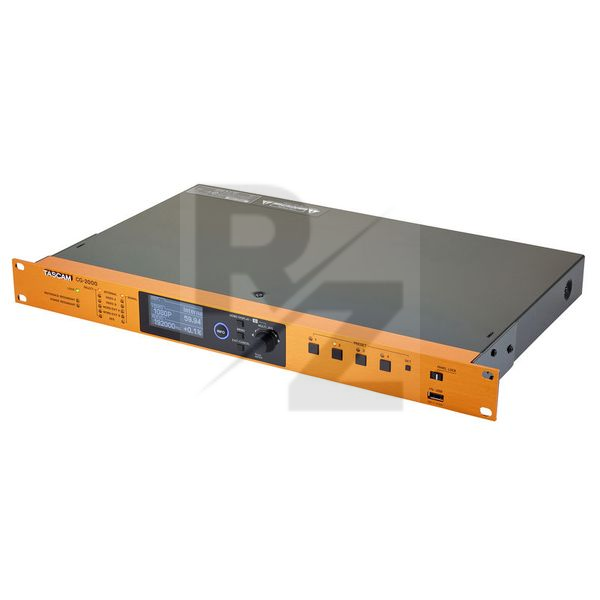

Tascam CG-2000

Masterclock Generator

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Tascam
Average price : $3468
For broadcast and postproduction studios
Precise generation of the clock signal by temperature-stabilised quartz oscillator (OCXO) that is unaffected by ambient temperature
Stable synchronisation between picture and sound
Flexible system setup with a variety of audio and video formats (audio: Wordclock, AUS3, AES11, SPDIF, video: NTSC, PAL, HD tri-level)
Jitter management circuit
Clock input supports clock rates up to 10 MHz
4 Video sync outputs
12 Word clock outputs
2 AES3 / AES11 outputs
2 SPDIF outputs
2 Wordclock outputs support Fs/4, Fs/2, 2 Fs, 4 Fs and 256 Fs for use with ProTools and other DAW programs
Support for 0.1% or 4% pull-up / pull-down
Output levels of the wordclock ports can be customised
Analyser function
Logging function
Up to 4 system settings can be stored
Organic EL display
Redundant power supply
Redundant inputs for video sync and wordclock
GPO signaling outputs for error status monitoring
Design: 19" / 1 U
Dimensions: 483 x 44 x 310 mm
Weight : 3.3kg
