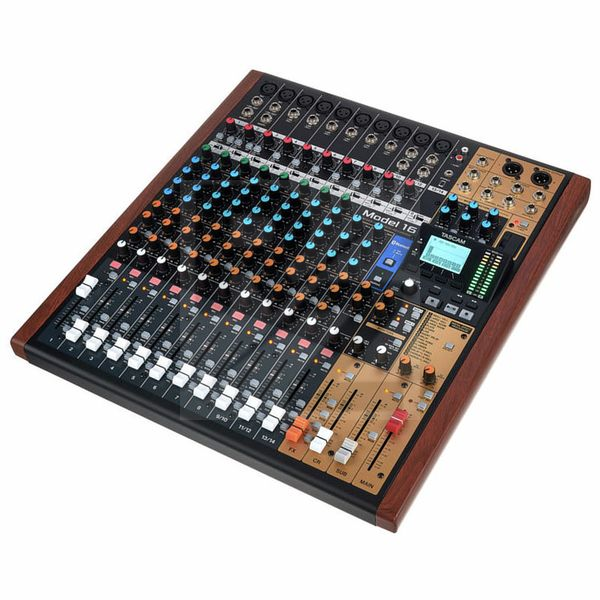

Tascam Model 16
Analogue Mixer with Multi-Track Recorder and Audio Interface

Latest User Reviews
One of my best investments :)
I bought the Tascam Model 16 for live mixing while recording and studio recording. It is a joy to use. Great clean sound from pre-amps. Compressor, EQ, and effects all sound great. It's also analog, aside from effects and recording, and has multitrack recording. The layout is intuitive and makes mixing and recording a breeze. The mixer can be used for DAWless recording with punch in/out, but it also integrates well with a DAW through USB and SD card. I haven't had any issues so far. Overall, it is a versatile and fun to use tool.
Une étrange machine non fonctionnelle
Le workflow est étrange, surtout avec Logic Pro. Il faut passer son temps à rerouter toute lâinstallation entre enregistrements et mixages. Au delà des soucis pratiques, lâunité est arrivée avec un soucis gênant : les compresseurs de pistes fonctionnaient à lâenvers. A savoir, allumés en position off et éteints à fond. Ce, sur 4 tranches. De fait, unité renvoyée. Dommage, câétait prometteur.
Love the mixer and from the perspective of newbie I got only one thing to clarify: thought that it will be possible to put different effects on different channels, sadly its not.
Otherwise its perfect analog mixer :)
Technical Data
- Manufactured by Tascam
- Released in 2019
- Average price : $938
- Integrated audio interface for 16 channels (14 inputs + stereo sum)
- 16-Track recording is possible in WAV/BWF format on SD/SDHC/SDXC cards up to 128 GB
- 44.1-48 kHz
- 16/24 Bit
- 1-Button compressor for channels 1-8
- Switchable low-cut
- 3-Band EQ with tunable mids for all mono channels
- 4-Band EQ with tunable mids for sum and subgroup
- Overdubbing
- Punch in/out
- LC-Display
- 12-Segment LED meter
- Integrated effects processor
- Switchable phantom power: +48 V
- AC 100 - 240 V
- Bluetooth (V5)
- Rackmount kit available separately
- Dimensions : 430mm x 113mm x 463mm
- Weight : 7kg
- 10 Microphone inputs: XLR
- 2 Hi-Z instrument inputs: 6.3 mm jack
- 12x Line inputs: 6.3 mm balanced jack
- 2 Inserts: 6.3 mm jack (channel 1 and 2)
- Line input: 3.5 mm mini jack / 2x RCA
- 2 Main outputs: XLR
- 2 Sub outputs: 6.3 mm jack
- 2 Monitor outputs: 6.3 mm jack
- 2 Control room outputs: 6.3 mm jack
- Stereo headphone output: 6.3 mm jack
- Foot switch input: 6.3 mm jack
- FX output: 6.3 mm jack
- USB 2.0
