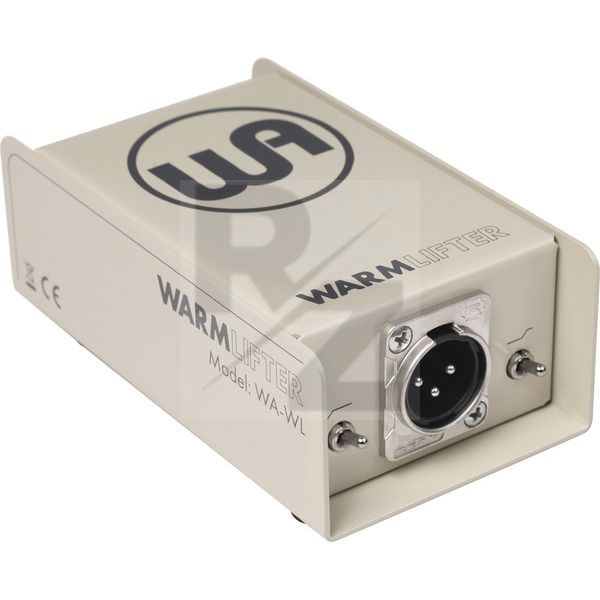

Warm Audio WA-WL
Active Inline Microphone Preamplifier
Technical Data
- Manufactured by Warm Audio
- Ultra-low noise JFET input
- Balanced signal path (in/out)
- 26 dB gain
- Switchable 100 Hz (12 dB) high-pass filter
- Switchable 3 kHz (2.5 dB) high-shelf boost
- Input impedance: 2.4 kOhm
- Output impedance: 150 ohms
- Max-Input: -11 dBu (218mV rms)
- Max-output: 15 dBu (4.36V rms) THD+N @ 15dBu: -100dB (0.001%)
- Output noise: 7.75 uV (A-weighted), at 150 Ohm input
- Frequency range: 10-100,000 Hz +/- 0.2 dB
- Requires 48V phantom power with 4.7 mA power consumption
- Dimensions: 69 x 41 x 119 mm
- Weight : 0.34kg
