Yamaha AG 03 MK2 Live Stream Pack WH

Live Streaming Set

If you own this item for a while and already published a review somewhere on the internet, you can publish it again here with a custom past date :

Technical Data

Manufactured by Yamaha
Average price : $393

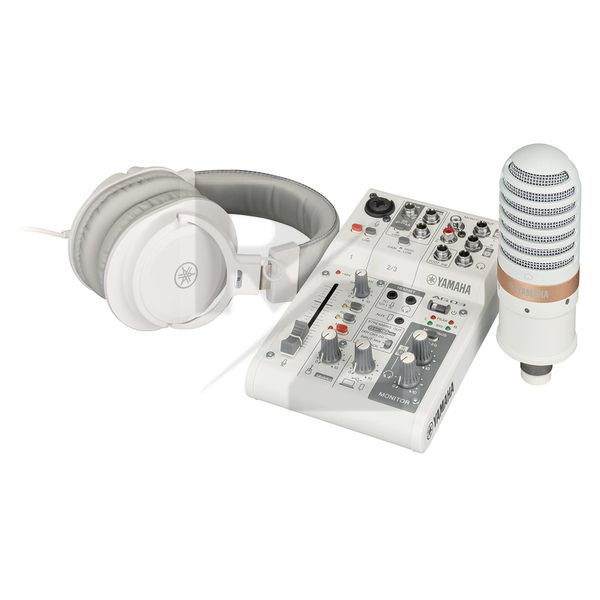

Consists of AG 03 MK2 3-channel live streaming mixer + YCM-01 condenser microphone + YH-MT01 closed headphones and 3m XLR microphone cable
24-Bit / 192 kHz
+48V phantom power switchable
Pad switch
DSP effects such as compressor, equaliser and reverb
60 Faders
FX bypass (via optional footswitch)
iPad compatible with optional Camera Connection Kit (not included)
Connections: 1x microphone/line input XLR/jack combo plug
1x Hi-Z instrument input
2x Line input: 6,3 mm jack (input 2 switchable between Hi-Z and line)
2 Line output: 6,3 mm jack
2x Line-Out (RCA)
Stereo headphone output: 6.3 mm jack
Footswitch connection
Headset connection: 2x 3.5 mm mini-jack (earphones and microphone)
Aux input: 3.5 mm mini jack Stereo
USB Type-C port
Power supply: 5 V, 500 mA
Includes Steinberg Cubase AI
Dimensions: 129 x 63 x 202 mm
Weight : 0.8kg
Colour: White
Polar pattern: Cardioid
Frequency range: 30 Hz - 20 kHz
Max. SPL: 130dB (THD 1,0% 1 KHz)
Sensitivity: -37dB±3dB (0dB=1V/Pa at 1kHz)
Requires +48V phantom power
Includes microphone stand holder and storage bag
Dimensions (D x L): 55 x 166 mm
Weight : 0.4kg
Colour: White
