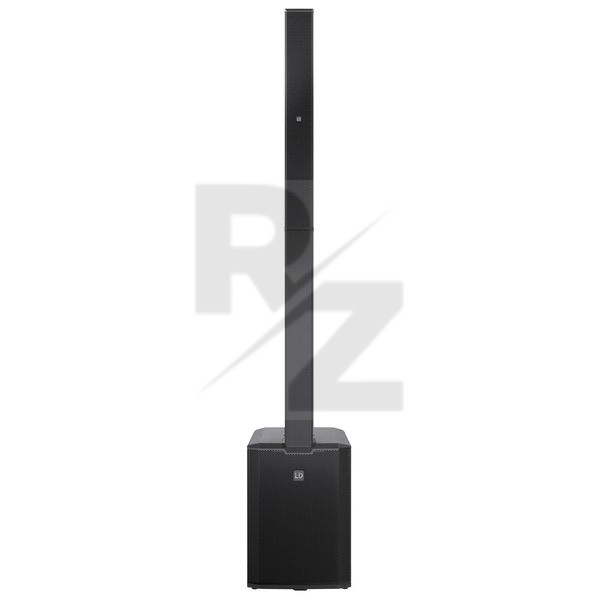

LD Systems Maui 28 G3 MIX

Technical Data

• Manufactured by LD Systems
• Average price : $1890
• Compact plug-and-play column system with integrated digital 6-channel mixer
• Digital 6-channel mixer with integrated effects and footswitch input
• Power: 1030 W RMS, 2060 W peak
• Max SPL: 127 dB
• Frequency range: 37 - 20,000 Hz
• Dispersion pattern (H x V): 120° x 30°
• Equipment: 12'' subwoofer, 12 x 3.5'' full-range speakers and 2 x 1'' high-frequency drivers
• Cardioid column for controlled dispersion in the low-mid and mid-range frequencies
• BEM-optimised HF waveguide and phase plugs for homogeneous dispersion characteristics
• Optimised bass reflex design for improved bass response and reduced flow noise
• Can be combined with second MAUI 28 G3 subwoofer for extended low-end or cardioid subwoofer setup
• New DynX DSP (Gen.2) for distortion-free playback even at maximum volume
• Protective circuits: Short circuit, multiband limiter, protection against direct current, protection against overheating
• Automatic setup detection for uncomplicated operation
• Wireless streaming via Bluetooth 5.0 with AAC coding
• Mic/Line / Hi-Z input: 2 x XLR / jack combination
• Stereo line input: 2 x XLR / jack combination
• Sub and System Out: XLR
• Monitor Out: 2 x XLR
• Simple and quick assembly without stands
• Robust subwoofer enclosure made of birch multiplex with hard-wearing polyurea coating
• Pillars made of lightweight aluminium with powder coating
• Dimensions : 370mm x 527mm x 472
• Column speaker dimensions (W x H x D): 103 x 1540 x 135 mm
• Weight of subwoofer: 23.6 kg
• Weight column speaker: 12.6 kg
• Total weight: 36.2 kg
• Colour: Black
