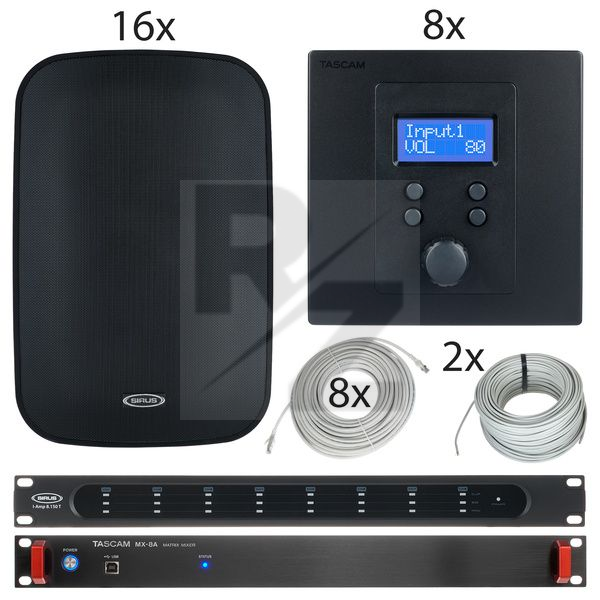

Sirus 8 x 2 Reflect Gastro Set

Technical Data

• Manufactured by Sirus
• Average price : $5487
• 8-Channel Matrix Mixer and USB Audio Interface with DSP Processor
• 16/24 Bit / 44.1/48 kHz
• Controllable via Ethernet, RS-485 and RS-232C
• Controllable functions for input section: Phantom power on/off, polarity, sensitivity, input level, automatic level adjustment, 4-band EQ, mute, fader
• Controllable functions for mixer: Matrix mixer, ducking, noise compensation (ANC), routing
• Controllable functions for output section: 10-Band EQ, delay, mute, fader, limiter, polarity
• Up to 50 presets can be saved
• 8 Analogue microphone / line inputs
• 8 Analogue line outputs
• Inputs and outputs via balanced Euroblock connectors with 3.81 mm spacing
• USB 2.0
• Pitch: 3.81 mm
• Build: 19" / 1 U
• Dimensions : 483mm x 45mm x 304mm
• Weight : 3kg
• 8 Channel Installation ampliier
• Output: 8x 150 Watt @ 70/100V (RMS)
• Class-D Amp
• Ideal for installations such as multi-zone applications
• Safety circuits such as thermal, short-circuit, on/off muting
• Euroblock input and output
• Rear-mounted volume control and power switch
• Signal, clip protection and power LEDs
• Frequency range: 100 - 15,000 Hz
• Input impedance: 20 kOhm balanced / 10 kOhm unbalanced
• Dimensions : 483mm x 360mm x 44mm
• Rack mount size: 1" 19U
• Weight. 7 kg
• Programmable Control Module For Wall Installation
• Suitable for switching between four or eight audio sources of a compatible, permanently installed audio system
• Four switch buttons and one rotary encoder with a push-button function
• Illuminated display (illumination switches off automatically)
• Up to eight control units can be used with one matrix mixer (Tascam MX-8A)
• Power supply via RS-485 from the mixer
• Power consumption: 0.24 W
• Connections: 2 x RJ-45 sockets (RS-485)
• Dimensions : 87 × 87 × 54mm
• 8" Installation Speaker
• With Bass Reflect Sound System
• Elegant design
• OBE technology (Optimal Bass Enhancement Radiator) provides deep and clear bass thanks to passive cone
• IPX66 weatherproof
• Speaker configuration: 1.1" tweeter and 8" bass speaker
• Impedance: 8 Ohm
• Transformer for 100 V / 70 V (6.25 / 12.5 / 25 / 50 W)
• Power: 50 W RMS / 80 W peak
• Maximum level: 106 dB
• Frequency range: 80 - 20,000 Hz
• Connection: plug-in screw terminal
• Housing material: ABS plastic
• Dimensions (H x W x D): 381 x 250 x 250 mm
• Weight : 5kg
• Colour: Black
• Includes mounting bracket
• Installation Cable for ELA
• Length: 100 m
• Wire cross-section: 2 x 2 x 0.8 mm²
• 100 volt cabling
• Foil shield
• Outer diameter: 7 mm
• Colour: Grey
• Cat.6a Patch Cable
• Length: 25 m
• Cat.6a with up to 500MHz for 10GBase-T Ethernet and HDBaseT
• Gold-plated precision plug contacts
• High-purity copper strands
• S/FTP Shielding
• AWG26
• Halogen-free (LSZH) jacket made of PE
• Low smoke development in case of fire
• Shielding: Yes
• Connection 1: RJ45
• Connection 2: RJ45
• Contacts: 50µ gold-plated
• Cable type: Cat.6a round cable
• Inner conductor material: OFC copper
• AWG: AWG26
• Material outer jacket: PE (LSZH)
• Signal transmission - supported standards: ANSI/TIA-568.C.2, ISO/IEC 61156-6 and 11801, EN50288-4-2 and EN50173
• Colour: Grey
