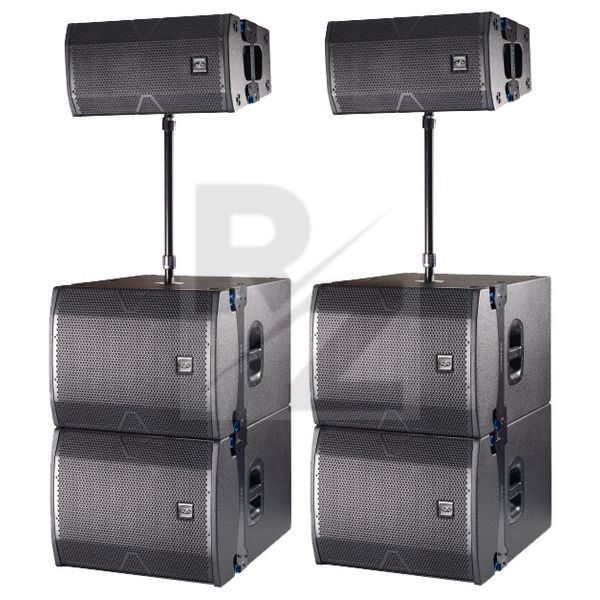

DAS Audio Vantec 2x20A/4x118A Stack

Technical Data

• Manufactured by DAS Audio
• Released in 2022
• Average price : $16695
• Active 12" Line-Array
• Class-D bi-amp power amplifier
• Power: 750 W RMS / 1500 W peak
• 1" Compression driver
• Frequency range: 63 - 20.000 Hz
• Coverage pattern (H x V): 90° x 15
• Maximum level: 135 dB
• Input: 1x XLR
• Output: 1x XLR
• Integrated 24-bit DSP with various voicing presets, 3-band EQ, delay, high-pass filter and FIR filter
• Remote control and audio streaming via DASlink App for Android and iOS
• DASlink GM Group Manager app for Android and iOS to control the DSP parameters of up to 12 Altea-700 and Vantec Series speakers
• Variable 35 mm speaker flange (+/- 13.5°)
• Dimensions (H x W x D): 335 x 625 x 440 mm
• Weight : 28.5kg
• Colour: Black
• Active 18" Bass Reflex Subwoofer
• Class-D amplifier
• Power: 1000 W RMS / 2000 W Peak
• Frequency range: 35 - 125 Hz
• Maximum level: 134 dB
• Inputs: 2x XLR/jack combo
• Outputs: 2x XLR
• Adjustable low-pass filter and switchable high-pass filter at the X-Over outputs
• 35 mm Speaker flange
• Dimensions (H x W x D): 490 x 615 x 785 mm
• Weight : 44kg
• Colour: Black
• Connecting Rod
• To connect satellite systems
• Both ends with unique patented expanding mandrel system for a tight and firm fit to the subwoofer and satellite speaker.
• Material: Steel
• Vibration-free connection
• With ring lock
• Weight : 1.2kg
• Height: 750 mm
• Power Twist Link Extension Cable
• Length: 1.5 m
• NC3FCA blue - NC3FCB blue/grey
• Rubber cable H07RN-F 3G 1.5 mm²
• Power Twist Link Cable
• Length: 1 m
• NC3FCA blue - NC3FCB blue / grey
• Rubber cable H07RNF 3G 1.5 mm²
• Professional Patch-Cable
• 100 cm
• XLR female/male
• Neutrik (REAN) connectors
• Black
• XLR Patch Cable
• Lengt: 150 cm
• XLR female to XLR male connectors
• Neutrik (Rean) connectors
• Colour: Black
